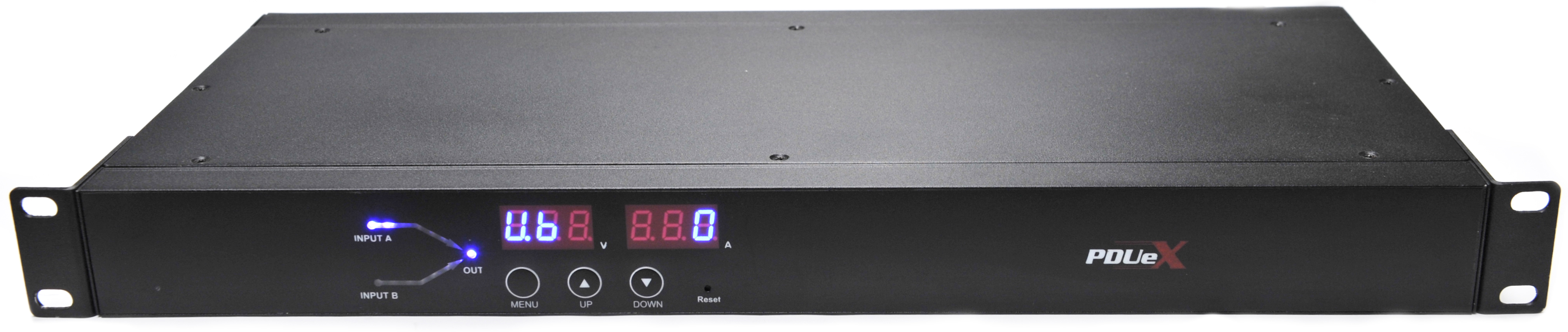

Basic ATS (Automatic Transfer Switch) Rack mountable 8 way 1U horizontal lockable IEC C13 outlet

KWB ATS is a new generation of Rack Mount Automatic Transfer Switch (ATS).
It delivers consistent power to single-corded equipment. The KWB ATS has dual input power cords supplying power to the connected load. In the event where the primary power source becomes unavailable, the KWB ATS will flawlessly source power from the secondary source without interrupting critical loads.
Manufactured to BS5733 with UL,CSA & VDE approved components, Earth bonded for total safety, compliant with RoHS certification & WEEE standards. Current rating 10A operating voltage 250V AC. Manufactured using lockable IEC C13 sockets, Textured black mild steel powder coated.

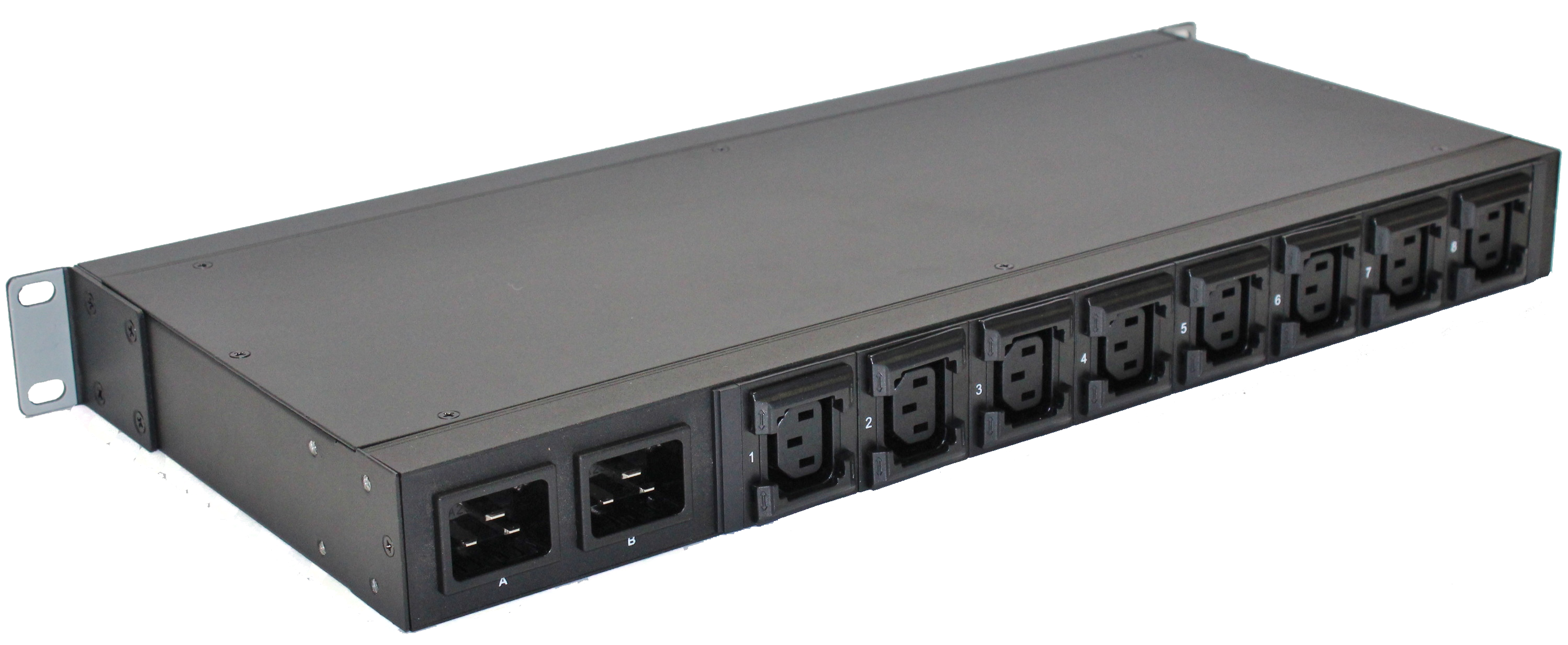

2 x A & B C20 Input connection, Horizontally mounted. Monitor the input voltage. Monitor the total current load.

Available with in multiple connections including 16A Commando Plug.

Dimensions 465 × 45.5 × 202 cm


Download Brochure
