KWB-IEC10HC13CLICK

£116.12 excl: VAT

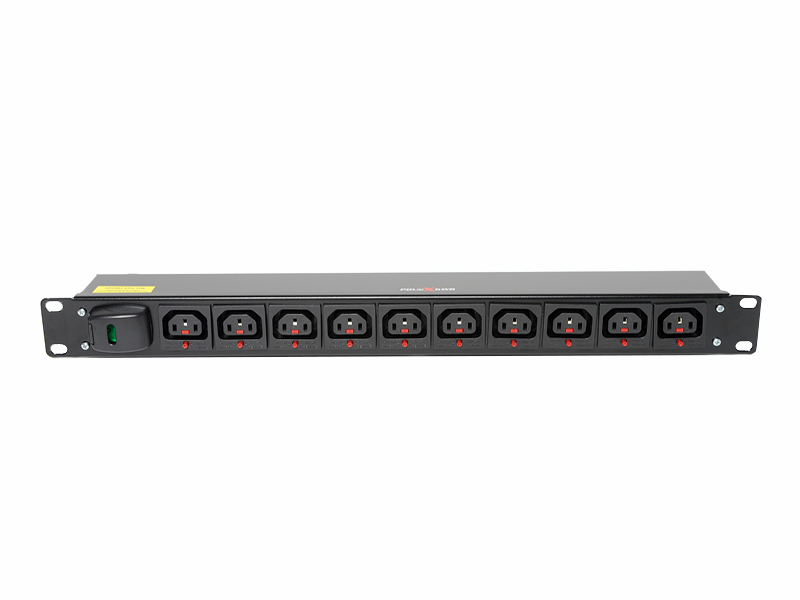

HorizontalIEC-C13 LockablePower Distribution UnitRack PDUs provide reliable rack power distribution via a single input with multiple IEC-C13 lockable sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions. Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating10A operating voltage 250VAc .Horizontal & Vertical mounting.

20 in stock

Set in black textured mild steel metal work Standard 3 meter 3 core cable or LSOH.Green illuminated 16amp double pole switch c/w switch cover.Horizontal available part code: KWB-IEC4H/CLICK, KWB-IEC6H/CLICK, KWB-IEC8H/CLICK and KWB-IEC10H/CLICK.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available.

Unit Code

KWB-IEC10HC13CLICK

Voltage

230 – 250V

Current

10A, 13A, 16A C20, 16A, 32A

Frequency

50/60Hz

Load Capacity

2.9Kw

Power Cable

3183Y (STD) or 3183B (LSZH)

Power Cable Length

3M

Quantity of Input

1

Outlets Type

IEC-C13

Plug Type

13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, C14 PLUG, Schucko PLUG

Unit Weight

1.6KG

Rack Mounting Type

1U

Circuit Protection

No

Switch

Yes

Unit Dimensions

440mm x 44mm x 60mm (W x H x D)

Unit Mounting Type

19" Horizontal

Storage Temperature

0 – 45*C

Quantity of Outlets

10

Nominal Output Voltage

230 – 250V

Operating Temperature

0 – 45*C

Download(s)

Download PDF
