KWB-IEC10VINDFS

£85.32 excl: VAT

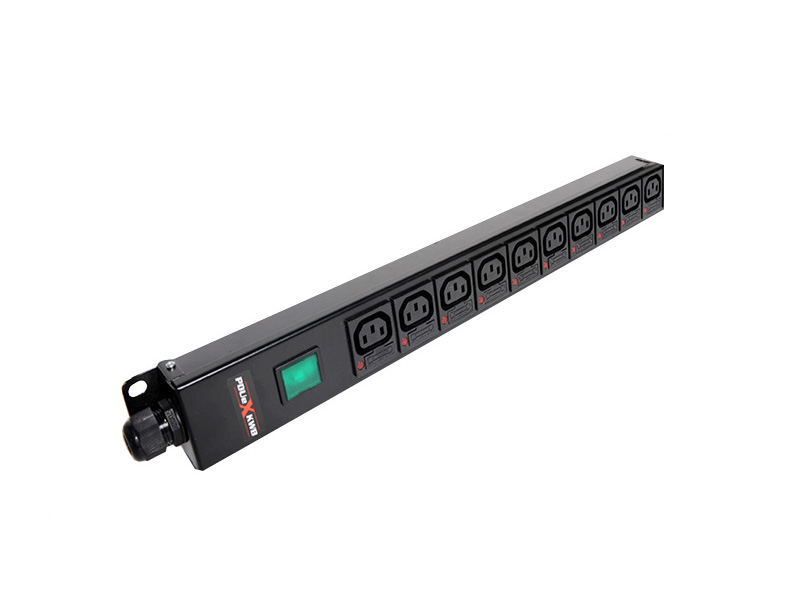

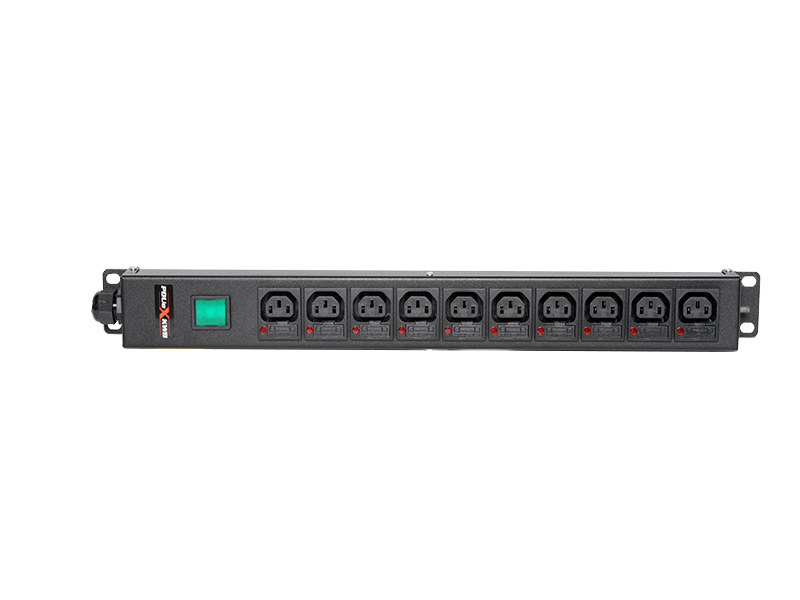

Rack mountable 10way slimline vertical individually fused IEC C13 outlet Power Distribution Unit.
Rack PDUs provide reliable rack power distribution via a single input with multiple individually fused sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions. Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc .Horizontal & Vertical mounting.

20 in stock

Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc . Manufactured using BS1363 tee sockets. Set in black textured mild steel metal work Standard 3 meter 3 core cable or LSOH. Green illuminated 16amp double pole switch c/w switch cover.

Vertical available Part Code:KWB-IEC8VINDFS, KWB-IEC12VINDFS, KWB-IEC16VINDFS, KWB-IEC20VINDFS, KWB-IEC24VINDFS.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available

Unit Code

KWB-IEC10VINDFS

Voltage

230 – 250V

Current

10A, 13A, 16A C20, 16A, 32A

Frequency

50/60Hz

Load Capacity

2.9Kw

Quantity of Input

1

Quantity of Outlets

10 x indvidually fuesd outlets

Power Cable

3183Y (STD) or 3183B (LSZH)

Power Cable Length

3M

Outlets Type

IEC-C13

Plug Type

13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, C14 PLUG, Schucko PLUG

Switch

Yes

Circuit Protection

No

Nominal Output Voltage

230 – 250V

Unit Mounting Type

Vertical

Unit Weight

2KG

Unit Dimensions

540mm x 52mm x 40mm (L x W x D)

Operating Humidity

0 – 95%

Operating Temperature

0 – 45*C

Operating Elevation

0 – 2500m

Storage Temperature

0 – 45*C

Download(s)

Download Brochure
