KWB-IEC4C19V

£68.32 excl: VAT

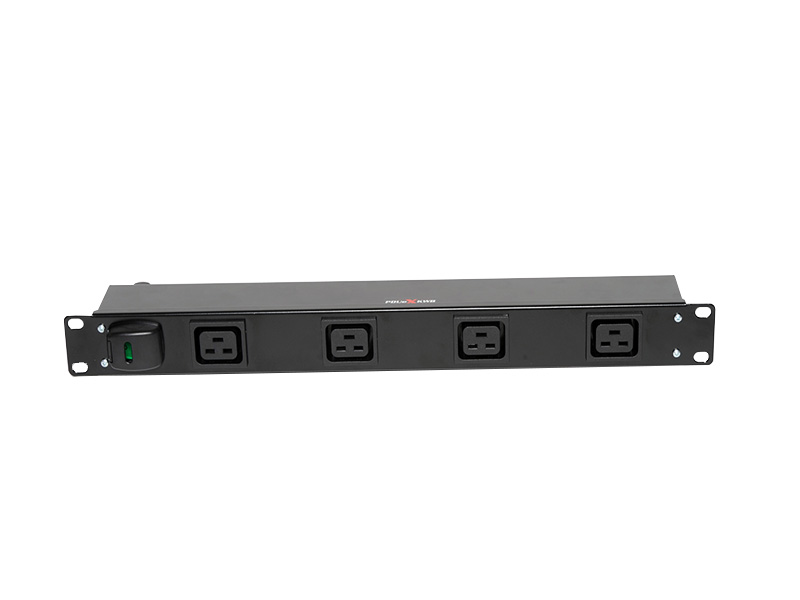

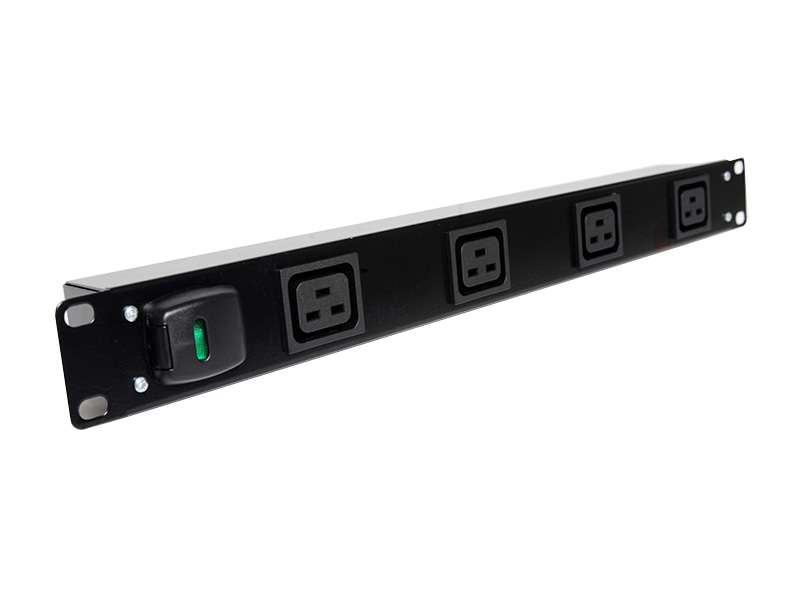

Rack mountable 4-way OU vertical IEC C19 outlet provide reliable rack power distribution via a single input with multiple IEC-C19 sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions.

20 in stock

Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc . Manufactured using BS1363 tee sockets. Set in black textured mild steel metal work Standard 3 meter 3 core cable or LSOH. Green illuminated 16amp double pole switch c/w switch cover.

Vertical mounting available part code:KWB-IEC4C19V, KWB-IEC6C19V, KWB-IEC8C19V, KWB-IEC10C19V, KWB-IEC12C19V.

Manufactured using BS1363 tee sockets.Set in black textured mild steel metal work Standard 3 meter 3 core cable or LSOH.

Green illuminated 16amp double pole switch c/w switch cover.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available.

Dimensions 440 × 44 × 60 cm
Unit Code

KWB-IEC4C19V

Voltage

230 – 250V

Current

10A, 13A, 16A C20, 16A, 32A

Frequency

50/60Hz

Load Capacity

2.9Kw

Quantity of Input

1

Quantity of Outlets

4

Outlets Type

IEC-C19

Rack Mounting Type

0U

Plug Type

13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, 6 x lockable IEC C19, C14 PLUG, Schucko PLUG

Power Cable

3183Y (STD) or 3183B (LSZH)

Power Cable Length

3M

Switch

Yes

Circuit Protection

No

Unit Dimensions

440mm x 44mm x 60mm (W x H x D)

Unit Mounting Type

Vertical

Unit Weight

1.3KG

Nominal Output Voltage

230 – 250V

Operating Temperature

0 – 45*C

Operating Humidity

0 – 95%

Operating Elevation

0 – 2500m

Storage Temperature

0 – 45*C

Download(s)

Download Brochure
