KWB-IEC6HINDFS

£71.92 excl: VAT

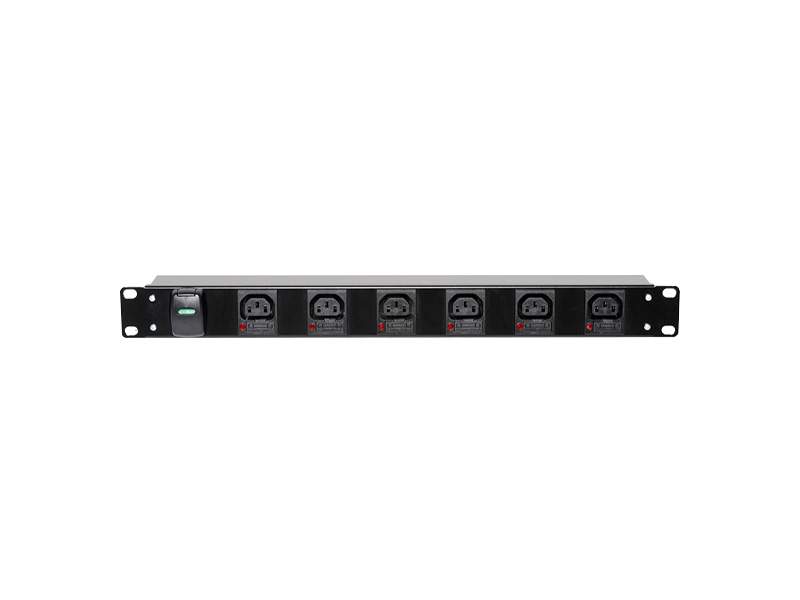

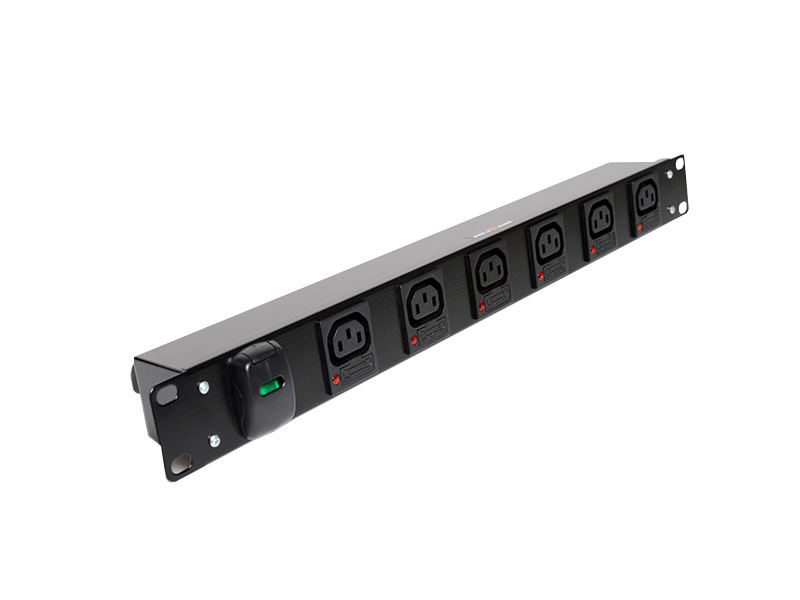

Rack mountable 6-way 1U horizontal IEC C13 individually fused outlet power distribution unit.
Rack PDUs provide reliable rack power distribution via a single input with multiple individually fused sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions.

20 in stock

Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc . Manufactured using BS1363 tee sockets. Set in black textured mild steel metal work Standard 3 meter 3 core cable or LSOH. Green illuminated 16amp double pole switch c/w switch cover.

Horizontal mounting available part code: KWB-IEC6HINDFS, KWB-IEC8HINDFS, KWB-IEC10HINDFS.

Manufactured using BS1363 tee sockets.Set in black textured mild steel metal work Standard 3 meter 3 core cable or LSOH.

Green illuminated 16amp double pole switch c/w switch cover.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available.

Unit Code

KWB-IEC6HINDFS

Voltage

230 – 250V

Current

10A, 13A, 16A C20, 16A, 32A

Frequency

50/60Hz

Load Capacity

2.9Kw

Nominal Output Voltage

230 – 250V

Quantity of Input

1

Quantity of Outlets

6

Power Cable

3183Y (STD) or 3183B (LSZH)

Power Cable Length

3M

Outlets Type

6 x individually fused outlets

Plug Type

13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, C14 PLUG, Schucko PLUG

Switch

Yes

Circuit Protection

No

Unit Mounting Type

19" Horizontal

Rack Mounting Type

1U

Unit Weight

1.3KG

Unit Dimensions

440mm x 44mm x 60mm (W x H x D)

Operating Temperature

0 – 45*C

Operating Humidity

0 – 95%

Operating Elevation

0 – 2500m

Storage Temperature

0 – 45*C
