KWB-PDU12V

£97.65 excl: VAT

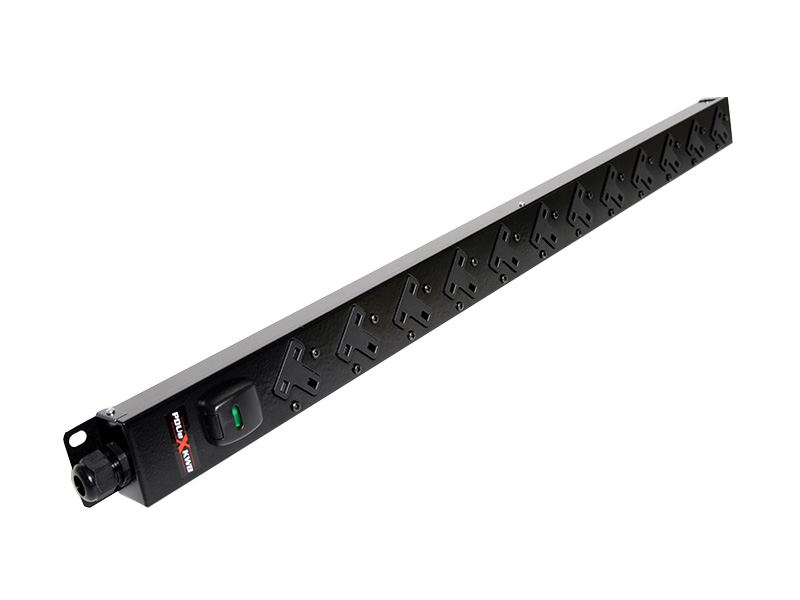

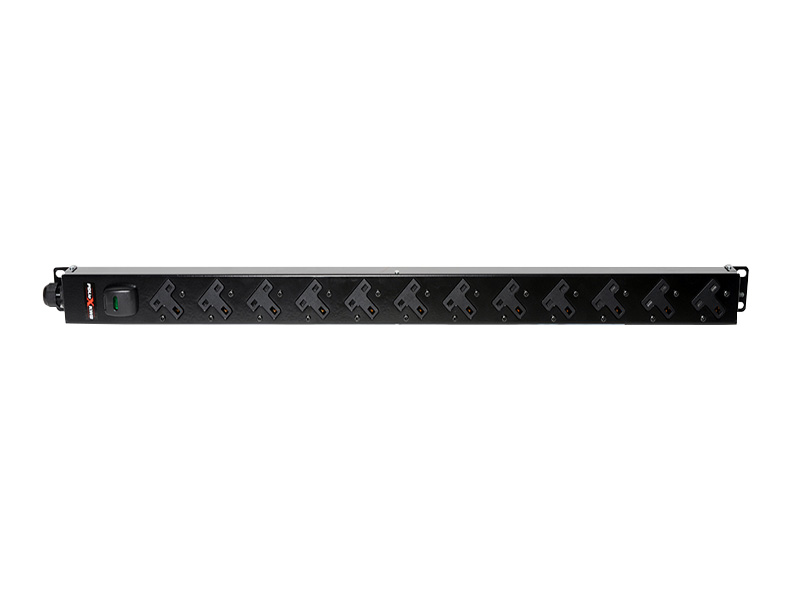

Vertical UK OUTLETS Rack PDUs provide reliable rack power distribution via a single input with multiple T sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions.

Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc . Manufactured using BS1363 tee sockets. Set in black textured mild steel metal work Standard 3 meter 3 core cable or LSOH. Green illuminated 16amp double pole switch c/w switch cover.

Vertical Left & Right hand sockets available. Part Code:KWB-PDU4V, KWB-PDU5V, KWB-PDU6V, KWB-PDU8V, KWB-PDU10V, KWB-PDU12V, KWB-PDU16V, KWB-PDU20V.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available

Unit Code

KWB-PDU12V

Voltage

230 – 250V

Current

10A, 13A, 16A C20, 16A, 32A

Frequency

50/60Hz

Load Capacity

2.9Kw

Quantity of Input

1

Power Cable

3183Y (STD) or 3183B (LSZH)

Power Cable Length

3M

Plug Type

13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, C14 PLUG, Schucko PLUG

Quantity of Outlets

12

Outlets Type

UK 13A socket

Switch

Yes

Circuit Protection

No

Nominal Output Voltage

230 – 250V

Unit Mounting Type

Vertical

Rack Mounting Type

0U

Unit Weight

2KG

Unit Dimensions

1060 mm x 52 mm x 40 mm

Operating Temperature

0 – 45*C

Operating Humidity

0 – 95%

Operating Elevation

0 – 2500m

Storage Temperature

0 – 45*C
