KWX-N16A10C3-H2

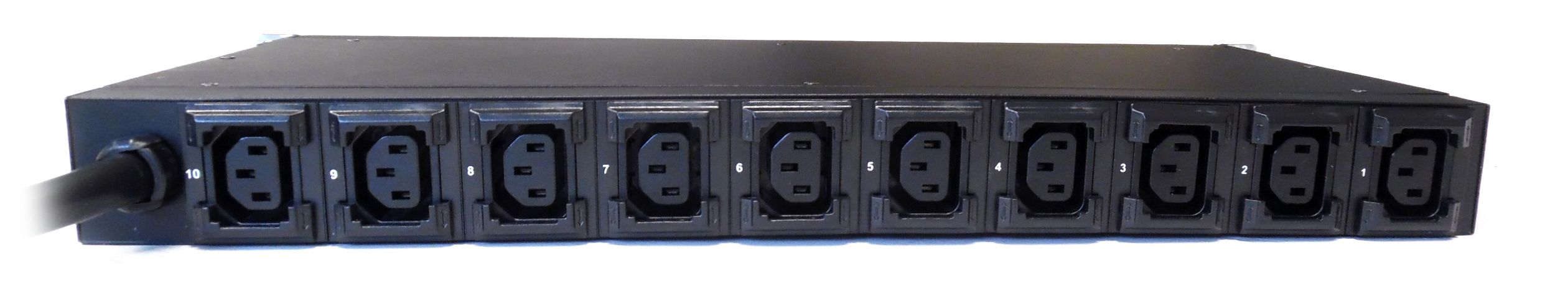

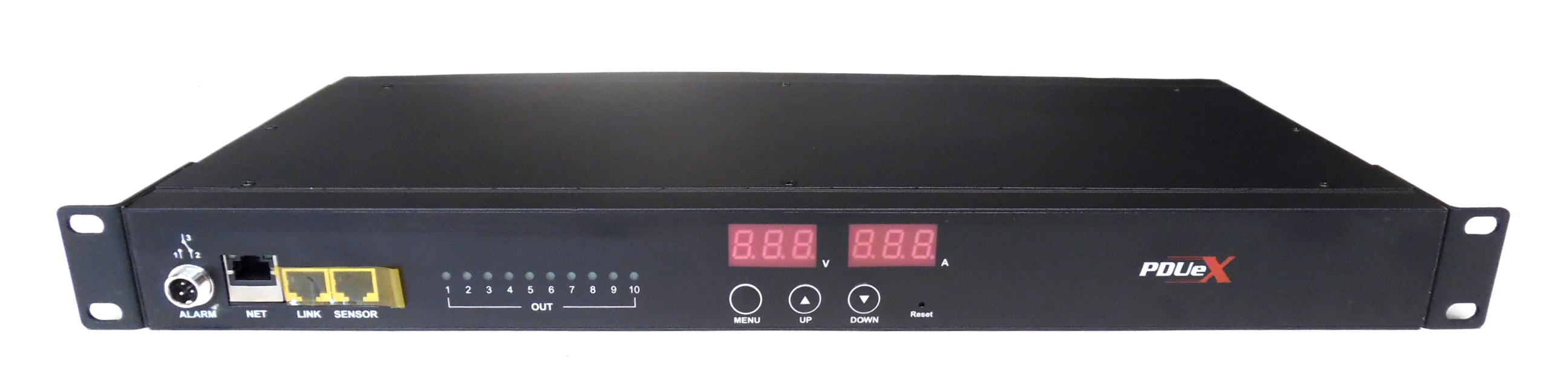

1U 10 Port 16A IEC-320 C20 input 230V serial/internet 8 x lockable IEC-C13 Outlet Monitoring Power distribution Unit

Mounting length: 483mm (19″)

Monitor PDU, 1U 10 Port 16A IEC-320 C20 input 230V serial/internet 10 x lockable IEC-C13 Total PDU Current Monitoring and Outlet Monitoring.
PDU eXperts KWX-Network series is the latest generation of Intelligent power distribution units designed and manufactured to meet the demands of today’s data center and telecommunications equipment.PDU eXperts intelligent KWX-PDU management software enables the administrator to give designated users predetermined control over whole PDUs or even single outlets over a range of PDUs. Users have the ability to monitor and control directly through the PDUs network module on site, or remotely using our embedded multi-threading inner core “Real time operating systems” (RTOS) software. The management software is accessible within the data centers secure hardwired network supporting various TCIP/IP protocols, including HTTP, HTTPS, SSL, SNMP versions 1,2 & 3, TELNET, SSH, SMTP and NTP.

Key Features:
Individual Outlets Power Monitoring- Total current monitoring- Adjustable sequential powering (on/off)- Total voltage input & output monitoring- Total kWh used – Power factor recognition – Up to 55°C Hot aisle operating capacity-SMS, SNMP & Email-Effortless user friendly PDU management interface-16A IEC-320 C20 input- 10 x lockable IEC C13 sockets

Built in environmental monitoring as standard:

Temperature & humidity alarm sensor-Rack door tamper sensor-Infrared sensor-Smoke detector sensor-Automated alarm notifications-Up to 8 plug and play sensors-Lockable IEC C13 sockets as standard-Blade server ready-Intelligent outlet type and recognition-24v & 48v DC, Single phase 120v & 240v & 3 phase 400v

Built in environmental monitoring as standard:

Optional:

  • temperature and humidity sensor
  • smoke sensor
  • water logging sensor
  • infrared sensor (Intrusion Detection)
  • rack door sensor

Monitor:

  • total current
  • total kWh
  • input voltage
  • environment humidity
  • environment smoke
  • water logging
  • infrared monitoring
  • door monitoring

Alarm settings:

  • total current threshold alarm
  • temperature and humidity alarm,
  • smoke alarm
  • water logging alarm
  • infrared alarm (intrusion detection)
  • rack door alarm
Dimensions 440 × 45 × 200 cm
