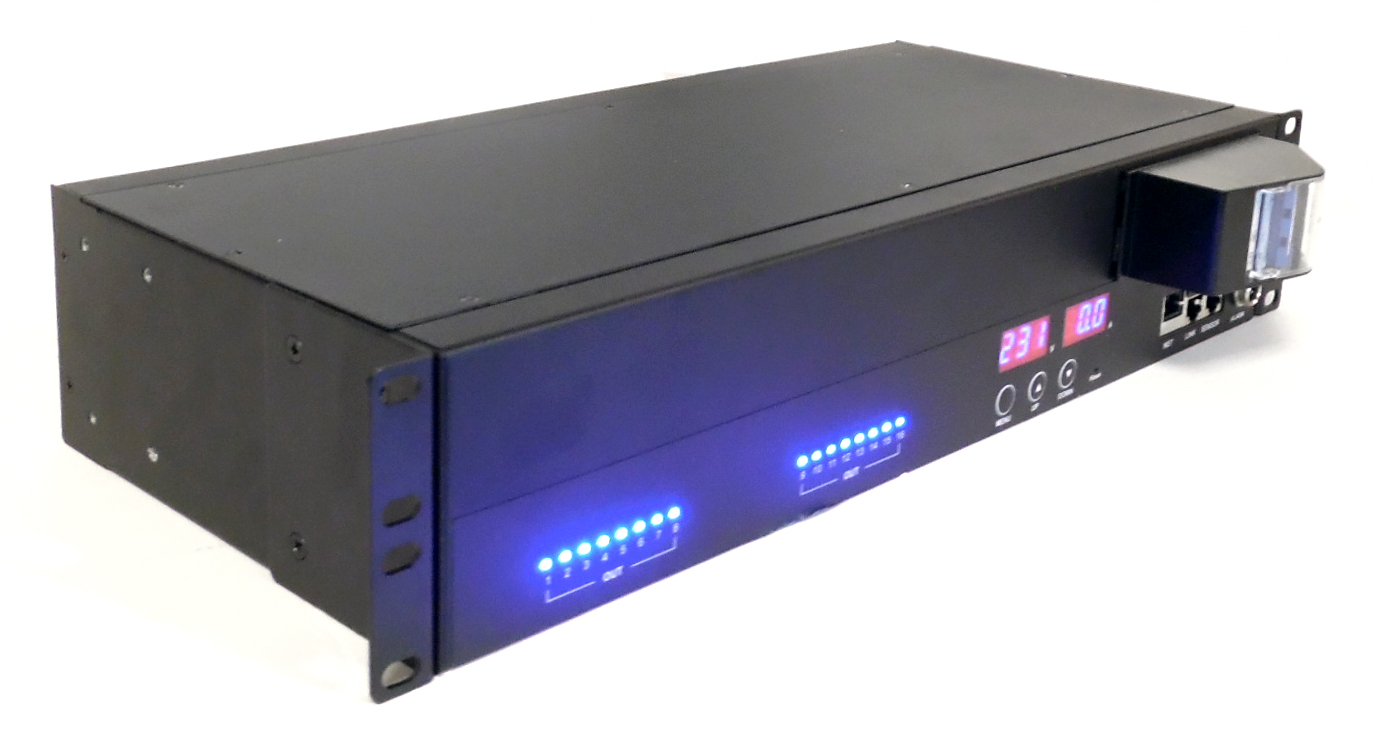

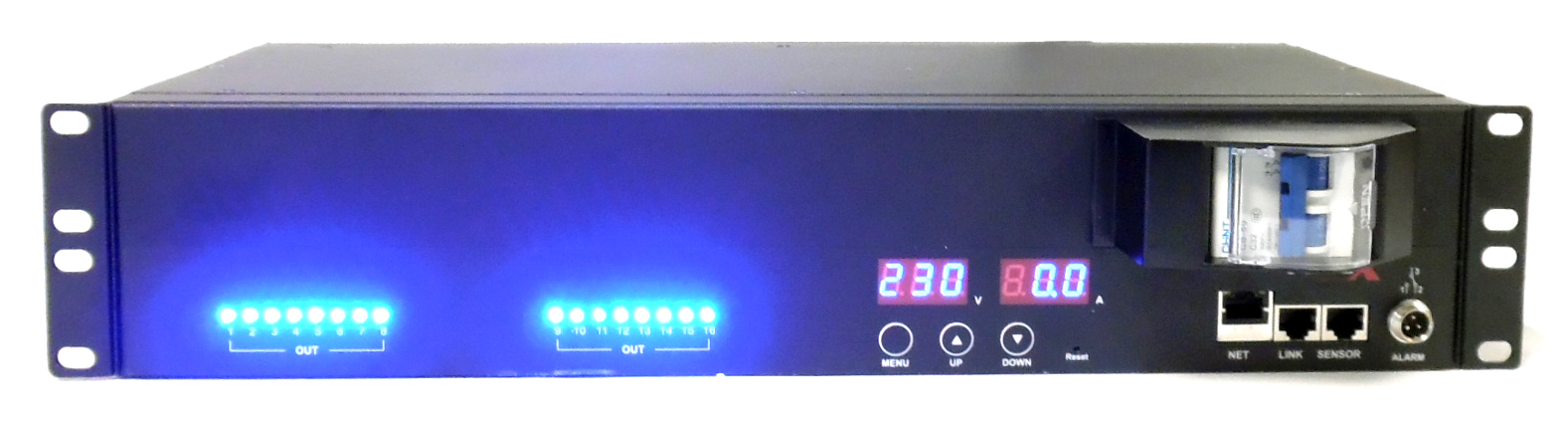

KWX-N32A16P2U-H4 Individual Outlet level Monitoring and Switching 32A 0U 16 Port plug: IEC60309 32A input 230V CB serial/internet. 16 x lockable IEC-Total PDU Current Monitorin, Outlets Level Switching and Monitoring.
PDU eXperts KWX-Network IP PDU. Total Current Monitoring, Individual Outlet level metering and switching (On/Off) series offers a range of power monitoring and switching capabilities combined with built in local environmental monitoring software, providing real time power consumption of the total current load and voltage of the PDU and individual outlets (dependent on version), which is accessible via the user friendly PDU eXperts PDU management interface.
PDU eXperts intelligent KWX-PDU management software enables the administrator to give designated users predetermined control over whole PDUs or even single outlets over a range of PDUs. Users have the ability to monitor and control directly through the PDUs network module on site, or remotely using our embedded multi-threading inner core “Real time operating systems” (RTOS) software. The management software is accessible within the data centers secure hardwired network supporting various TCIP/IP protocols, including HTTP, HTTPS, SSL, SNMP versions 1,2 & 3, TELNET, SSH, SMTP and NTP.
Total Power Monitoring-Individual outlet metering and power switching-Adjustable sequential powering (on/off)-Hot swappable network card (for 0U only PDU)-Total voltage input & output monitoring-Total kWh used-Power factor recognition-32Amp input plug-16 x lockable IEC-C13 Outlets-Up to 55°C Hot aisle operating capacity-SMS, SNMP & Email. Blade server ready, Intelligent outlet type and recognition, 24v & 48v DC, Single phase 120v & 240v & 3 phase 400v-Effortless user friendly PDU management interface Control up to 3 KWX slaves from a master KWX PDU
Built in environmental monitoring as standard:
Temperature & humidity alarm sensor-Water logging alarm sensor-Infrared sensor “Intrusion & detection”-Smoke detector-Automated alarm notifications. Up to 8 plug and play sensors.
- temperature and humidity sensor
- smoke sensor
- water logging sensor
- infrared sensor (Intrusion Detection)
- rack door sensor
- total current
- total kWh
- input voltage
- environment humidity
- environment smoke
- water logging
- infrared monitoring
- door monitoring
- total current threshold alarm
- temperature and humidity alarm,
- smoke alarm
- water logging alarm
- infrared alarm
- rack door alarm
