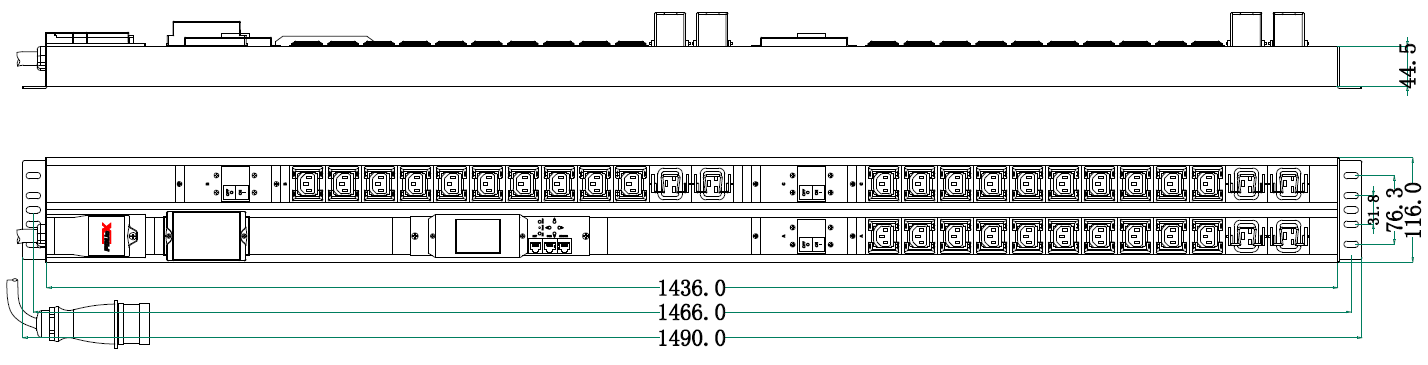

KWX-N32A36x6-V1 – Dual rail 42 port (36x lockable IEC C13 / 6 x C19), 0U vertical rack mountable intelligent power distribution unit.

42 port 0U Rack Mountable 32Amp Monitored PDU-KWX Network PDU series is the latest generation of Intelligent power distribution units designed and manufactured to meet the demands of today’s data center and telecommunications equipment.

PDU eXperts intelligent KWX-PDU management software enables the administrator to give designated users predetermined control over whole PDUs or even single outlets over a range of PDUs. Users have the ability to monitor and control directly through the PDUs network module on site, or remotely using our embedded multi-threading inner core “Real time operating systems” (RTOS) software. The management software is accessible within the data centers secure hardwired network supporting various TCIP/IP protocols, including HTTP, HTTPS, SSL, SNMP versions 1,2 & 3, TELNET, SSH, SMTP and provides surge and lightning and protection.

Key Features:
Adjustable sequential powering (on/off)-Total current monitoring-Total voltage input & output monitoring-Total kWh used • Power factor recognition-Up to 55°C Hot aisle operating capacity-SMS, SNMP & Email-Lockable IEC C13 sockets as standard-10 x lockable IEC C13 sockets-16Amp Industrial plug.Blade server ready-Intelligent outlet type and recognition-24v & 48v DC, Single phase 120v & 240v & 3 phase 400v-Effortless user friendly PDUmanagement interface

Built in environmental monitoring as standard:


  • temperature and humidity sensor
  • smoke sensor
  • water logging sensor
  • infrared sensor (Intrusion Detection)
  • rack door sensor


  • total current
  • total kWh
  • input voltage
  • environment humidity
  • environment smoke
  • water logging
  • infrared monitoring
  • door monitoring

Alarm settings:

  • total current threshold alarm
  • temperature and humidity alarm,
  • smoke alarm
  • water logging alarm
  • infrared alarm (intrusion detection)
  • rack door alarm


Download Brochure
