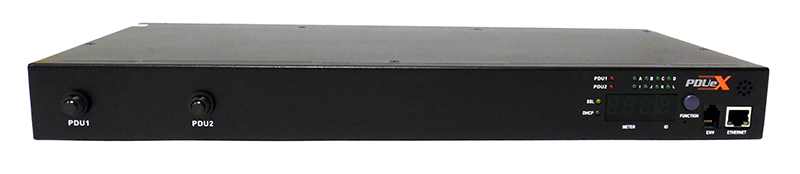

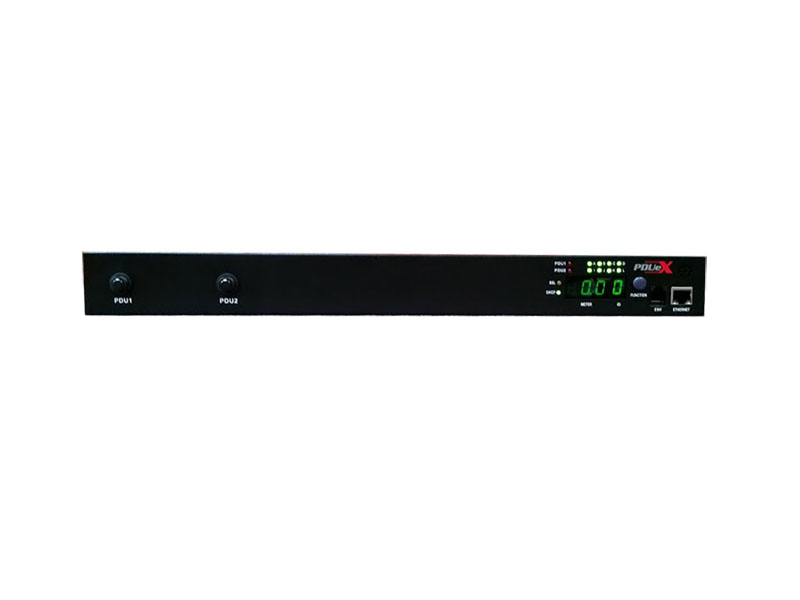

PDUeX-SW-32A-08H – Rack mountable Intelligent 8 Port Switched horizontal Power Distribution Unit.
Switched PDU, Remote outlet level controls allow power on/off functionality for power recycling and restart locked-up IT equipment.

PDUeX-SW-32A-08H2_data_sheet.pdf (487 downloads) Switched PDU allows customer to access the PDU remotely to monitor the power usage, to power on/off outlets and control load by web and SNMP. Rack PDU 1U 230V 32A Commando plug (1)RJ45 (1) Circuit Breaker

  • Built-in web server to manage PDU by network in real time
  • True RMS Current Meter
  • Local LED Displays Amps, IP Address
  • Base-T Ethernet Port
  • IPv4 Support
  • SNMP Support (v1)
  • SSL Web Browser (Https) for Set Up and Operation
  • Alarm Notification via Email and SNMP
  • User Defined Alarm Thresholds
  • User Defined Power On/OFF Sequence Time.
  • Remote On/Off Power Switching
  • Sequential Power On/Off
  • Memorized last Output Status
  • Circuit Breaker Protection
  • Connect up to 1 Temperature and Humidity Probe
  • Optional for Voltage and kWh Monitor
