KWB-IEC8VC13CLICK

£98.11 excl: VAT

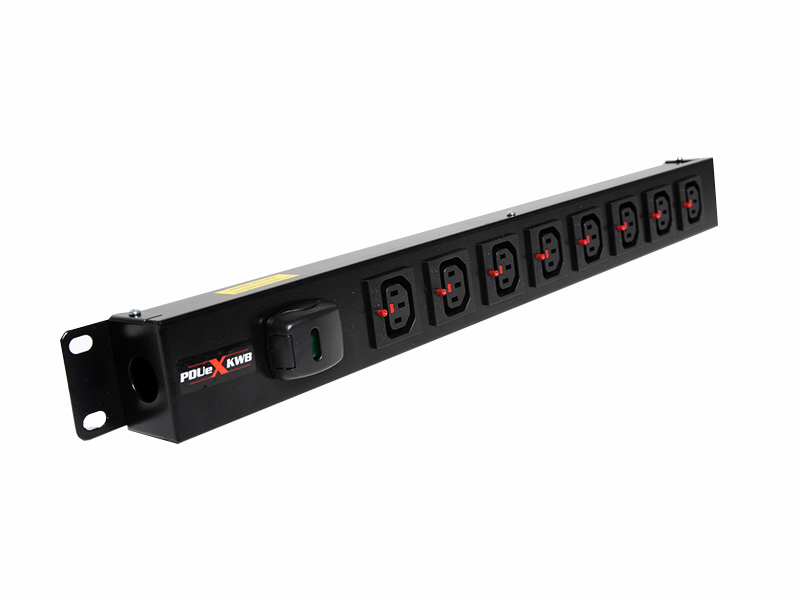

Horizontal and Vertical IEC-C13 Lockable Power Distribution Unit Rack PDUs provide reliable rack power distribution via a single input with multiple sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions. Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating13A operating voltage 250VAc .Horizontal & Vertical mounting.

20 in stock

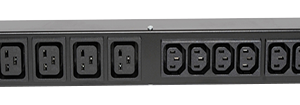

Set in black textured mild steel metal work Standard 3 meter 3 core cable or LSOH.Green illuminated 16amp double pole switch c/w switch cover.Vertical available part code: KWB-IEC6V/CLICK, KWB-IEC8VCLICK, KWB-IEC10VC13CLICK, KWB-IEC12VC13CLICK and KWB-IEC24VCLICK.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available.

Unit Code

KWB-IEC10HC13CLICK

Voltage

230 – 250V

Current

10A, 13A, 16A C20, 16A, 32A

Frequency

50/60Hz

Load Capacity

2.9Kw

Quantity of Input

1

Quantity of Outlets

10 x lockable IEC C13

Power Cable

3183Y (STD) or 3183B (LSZH)

Power Cable Length

3M

Plug Type

13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, C14 PLUG, Schucko PLUG

Nominal Output Voltage

230 – 250V

Outlets Type

IEC-C13

Switch

Yes

Circuit Protection

No

Rack Mounting Type

0U

Unit Mounting Type

Vertical

Unit Weight

1.3KG

Unit Dimensions

585mm x 52mm x 40mm (W x H x D)

Operating Temperature

0 – 45*C

Operating Humidity

0 – 95%

Operating Elevation

0 – 2500m

Storage Temperature

0 – 45*C
