KWB-IEC12VC13CLICK

£128.46 excl: VAT

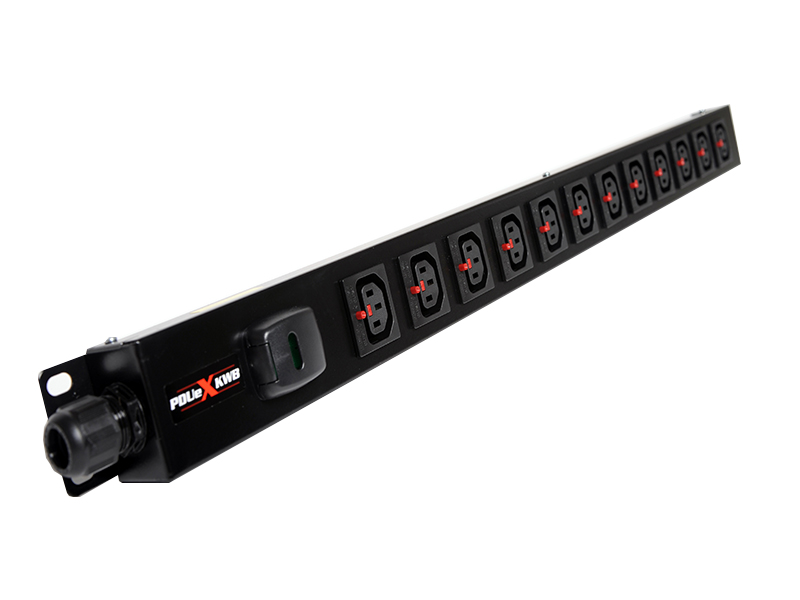

Vertical IEC-C13 LockablePower Distribution UnitRack PDUs provide reliable rack power distribution via a single input with multiple IEC-C13 lockable sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions. Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating10A operating voltage 250VAc .Horizontal & Vertical mounting.

20 in stock

Set in black textured mild steel metal work Standard 3 meter 3 core cable or LSOH.Green illuminated 16amp double pole switch c/w switch cover.Vertical available part code: KWB-IEC6V/CLICK, KWB-IEC8VCLICK, KWB-IEC10VC13CLICK, KWB-IEC12VC13CLICK and KWB-IEC24VCLICK.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available.

Unit Code

KWB-IEC12VC13CLICK

Voltage

230 – 250V

Current

10A, 13A, 16A C20, 16A, 32A

Frequency

50/60Hz

Load Capacity

2.9Kw

Quantity of Input

1

Quantity of Outlets

12

Power Cable

3183Y (STD) or 3183B (LSZH)

Power Cable Length

3M

Outlets Type

IEC-C13

Plug Type

13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, C14 PLUG, Schucko PLUG

Switch

Yes

Circuit Protection

No

Nominal Output Voltage

230 – 250V

Unit Mounting Type

Vertical

Rack Mounting Type

0U

Unit Weight

1.6KG

Unit Dimensions

675mm x 52mm x 40mm (L x W x D)

Operating Temperature

0 – 45*C

Operating Humidity

0 – 95%

Operating Elevation

0 – 2500m

Storage Temperature

0 – 45*C

Download(s)

Download PDF
