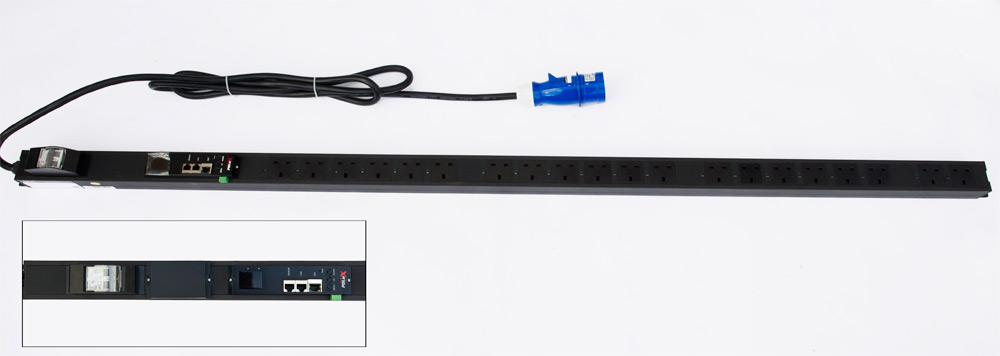

KWX-N32A20UK-V2 (BS1363 UK Sockets, Outlets level Monitoring)

KWX 32A 0U 20 Port IEC60309 32A input 230V CB serial/internet 20 x BS1363 UK Sockets, provides, total PDU Current Monitoring and Outlet level Monitoring.

Category:

Individual Outlet level Monitoring. The KWX BS1363 UK series offers a range of power monitoring and switching capabilities combined with built in local environmental monitoring software, providing real time power consumption of the total current load and voltage of the PDU and individual outlets power consumption. KWX-PDU management software enables the administrator to give designated users predetermined control over whole PDUs or even single outlets over a range of PDUs. Users have the ability to monitor and control directly through the PDUs network module on site, or remotely using our embedded multi-threading inner core “Real time operating systems” (RTOS) software. The management software is accessible within the data centers secure hardwired network supporting various TCIP/IP protocols, including HTTP, HTTPS, SSL, SNMP versions 1,2 & 3, TELNET, SSH, SMTP and NTP.

Optional:

  • temperature and humidity sensor
  • smoke sensor
  • water logging sensor
  • infrared sensor (Intrusion Detection)
  • rack door sensor

Monitor:

  • total current
  • total kWh
  • input voltage
  • environment humidity
  • environment smoke
  • water logging
  • infrared monitoring
  • door monitoring

Alarm settings:

  • total current threshold alarm
  • temperature and humidity alarm,
  • smoke alarm
  • water logging alarm
  • infrared alarm
  • rack door alarm

KWX-UK-OPM

Download(s)

Download Brochure
