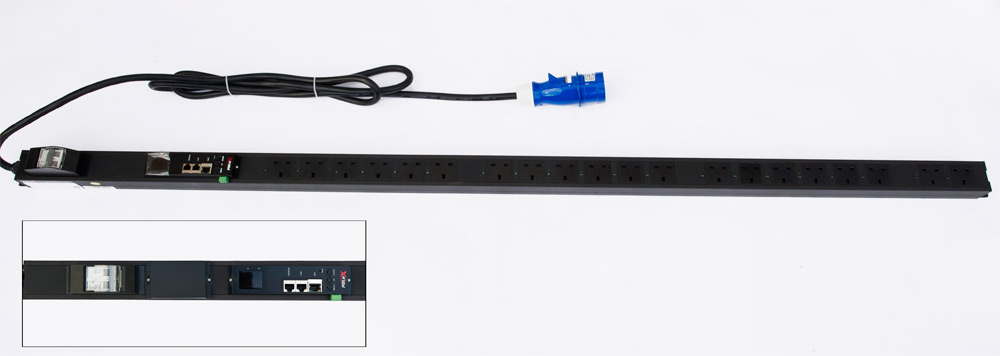

KWX-N32A20UK-V3 (BS1363 UK Sockets, Outlets level Switching)

KWX-N32A20UK-V3 IEC60309 32A input 230V CB serial/internet 20 x BS1363 UK Sockets. Fully managed, provides; ( Individual Outlets Level Switching ).


Individual Outlet level Switching . The KWX BS1363 UK Sockets series offers a range of power monitoring and switching capabilities combined with built in local environmental monitoring software, providing real time power consumption of the total current load and voltage of the PDU. Provides individual outlets level switching. PDU eXperts intelligent KWX-PDU management software enables the administrator to give designated users predetermined control over whole PDUs or even single outlets over a range of PDUs. Users have the ability to monitor and control directly through the PDUs network module on site, or remotely using our embedded multi-threading inner core “Real time operating systems” (RTOS) software. The management software is accessible within the data centers secure hardwired network supporting various TCIP/IP protocols, including HTTP, HTTPS, SSL, SNMP versions 1,2 & 3, TELNET, SSH, SMTP and NTP.


  • temperature and humidity sensor
  • smoke sensor
  • water logging sensor
  • infrared sensor (Intrusion Detection)
  • rack door sensor


  • total current
  • total kWh
  • input voltage
  • environment humidity
  • environment smoke
  • water logging
  • infrared monitoring
  • door monitoring.

Alarm settings:

  • total current threshold alarm
  • temperature and humidity alarm
  • smoke alarm
  • water logging alarm
  • infrared alarm
  • rack door alarm



Download Brochure
