KWB-IEC24VC13CLICK

£224.10 excl: VAT

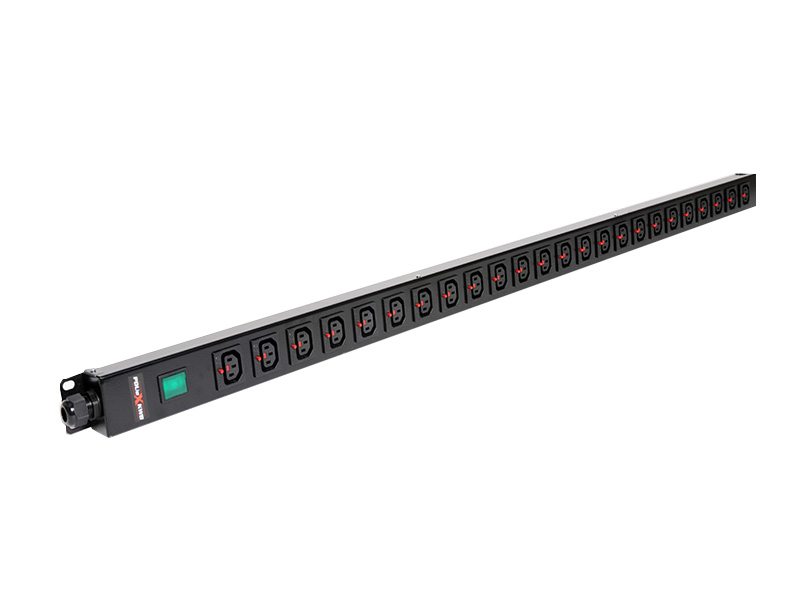

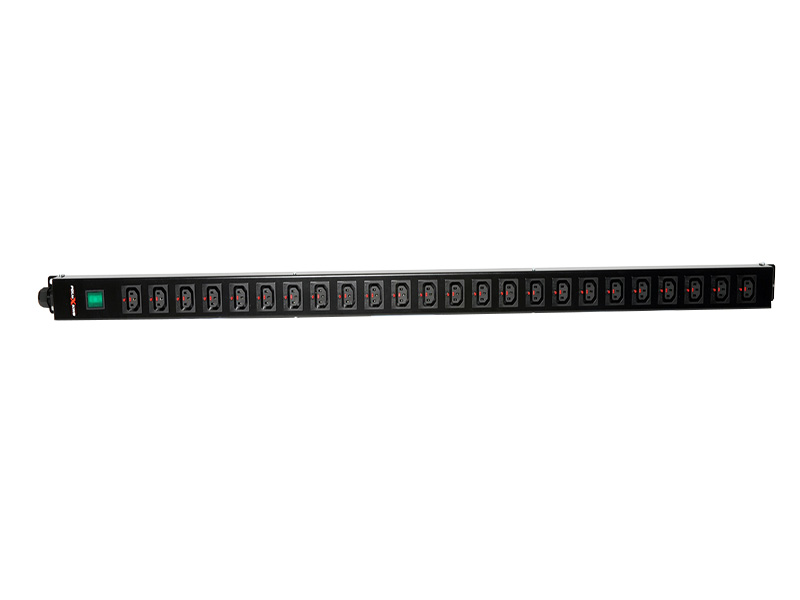

Vertical 24way IEC-C13 LockablePower Distribution Unit Rack PDUs provide reliable rack power distribution via a single input with multiple IEC-C13 lockable sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions. Manufactured to BS5733, with UL, CSA & VDE approved components. Earth bonded for total safety, compliant with RoHS certification. Current rating10A operating voltage 250VAc .Horizontal & Vertical mounting.

20 in stock

Set in black textured mild steel metal work Standard 3 meter 3 core cable or LSOH.Green illuminated 16amp double pole switch c/w switch cover.Vertical available part code: KWB-IEC6V/CLICK, KWB-IEC8VCLICK, KWB-IEC10VC13CLICK, KWB-IEC12VC13CLICK and KWB-IEC24VCLICK.

13A UK plug as standard or optional Schuko, Nema C14,C20, 16A Commando or Commando connectors available.

Unit Code

KWB-IEC24VCLICK

Voltage

230 – 250V

Current

10A, 13A, 16A C20, 16A, 32A

Frequency

50/60Hz

Load Capacity

2.9Kw

Quantity of Input

1

Power Cable

3183Y (STD) or 3183B (LSZH)

Power Cable Length

3M

Plug Type

13A BS1363 UK PLUG, 16A C20 PLUG, 16A COMMANDO, 32A COMMANDO, C14 PLUG, Schucko PLUG

Quantity of Outlets

24 x lockable IEC-C13

Outlets Type

IEC-C13

Switch

Yes

Circuit Protection

No

Unit Mounting Type

Vertical

Rack Mounting Type

0U

Unit Weight

2KG

Unit Dimensions

1051mm x 52mm x 40mm (L x W x D)

Operating Temperature

0 – 45*C

Operating Humidity

0 – 95%

Operating Elevation

0 – 2500m

Storage Temperature

0 – 45*C
